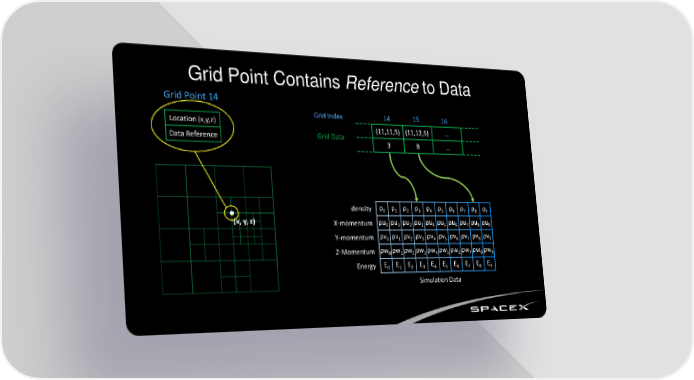

Grid Point Contains Reference to Data Grid Point 14 Grid Index 14 15 16 Location (x,y,z) (11,11,5) (11,12,5) … Data Reference Grid Data 3 8 … density ρ0 ρ1 ρ2 ρ3 ρ4 ρ5 ρ6 ρ7 ρ8 ρ9 (x, y, z) X-momentum ρu0 ρu1 ρu2 ρu3 ρu4 ρu5 ρu6 ρu7 ρu8 ρu9 Y-momentum ρv ρv ρv ρv ρv ρv ρv ρv ρv ρv 0 1 2 3 4 5 6 7 8 9 Z-Momentum ρw ρw ρw ρw ρw ρw ρw ρw ρw ρw 0 1 2 3 4 5 6 7 8 9 Energy E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 Simulation Data
