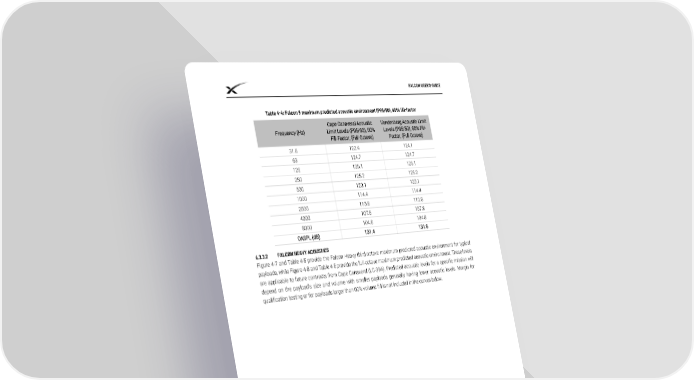

FALCON USER’S GUIDE Table 4-4: Falcon 9 maximum predicted acoustic environment (P95/50), 60% fill-factor Cape Canaveral Acoustic Vandenberg Acoustic Limit Frequency (Hz) Limit Levels (P95/50), 60% Levels (P95/50), 60% Fill- Fill-Factor, (Full Octave) Factor, (Full Octave) 31.5 122.4 124.1 63 124.7 124.7 125 126.1 126.1 250 125.2 125.2 500 120.1 120.1 1000 114.4 114.4 2000 110.8 110.8 4000 107.8 107.8 8000 104.8 104.8 OASPL (dB) 131.4 131.6 4.3.3.2 FALCON HEAVY ACOUSTICS Figure 4-7 and Table 4-5 provide the Falcon Heavy third-octave maximum predicted acoustic environment for typical payloads, while Figure 4-8 and Table 4-6 provide the full-octave maximum predicted acoustic environment. These levels are applicable to future contracts from Cape Canaveral (LC-39A). Predicted acoustic levels for a specific mission will depend on the payload’s size and volume with smaller payloads generally having lower acoustic levels. Margin for qualification testing or for payloads larger than 60% volume fill is not included in the curves below. © Space Exploration Technologies Corp. All rights reserved. 22
